General Description

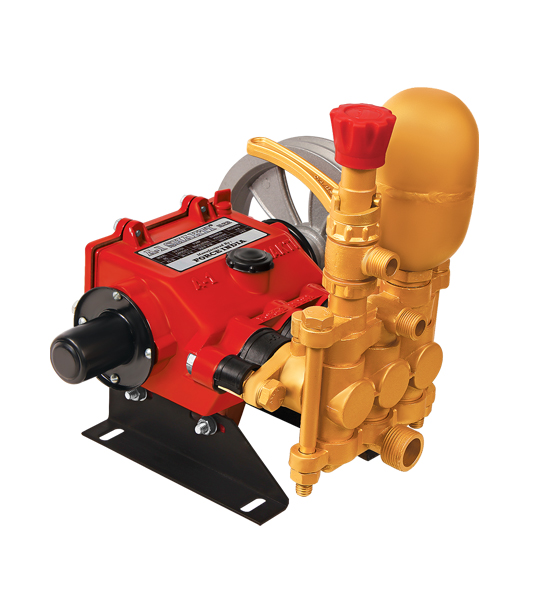

A-1 Shakti - HTP Horizontal Triplex Piston power sprayer unit, developing 450 PSI pressure and giving free discharge of 36 lit/min at 950 R.P.M. supplied with pulley, pressure vessel, by-pass cum pressure regulator valve (CVA), 3 meter long bypass hose & suction hose with strainer, couplings for delivery hose.
Special Features
- Heavy duty & efficient sprayer
- Triplex stainless steel piston and oil bath lubrication
- Develops 400 psi pressure
- Suction capacity 36 lit per minute at 950 R.P.M.
- Light weight & compact construction
- Pressure regulator for spraying pressure
- Convenient to spray with 4 spray gun at a time
Technical Description
- Model: AS-36
- No. of piston: 3
- Suction capacity: 36 LPM
- Working pressure: 450-500 PSI
- Maximum pressure: 600 PSI (40Kg/Cm2)
- Pump R.P.M.: 950
- Power Required: 3 H.P.
- L x W x H (in inch): 12.5"X12.5"X12.5"
- Weight (Without Pulley & Oil): 12 Kg (Approx)
